CoastKey PREMIUM PLUS Single Yamaha Plug&Play Mec/DBW
$1,095.00
The Premium Plus version of CoastKey includes a Start Panel and a 5-button remote control (FOB) that acts as a wireless kill switch (ECOS). It also enables wireless START/STOP of the engine and two remote-controlled functions (for example trim/tilt and anchor windlass).
PRODUCT INFORMATION
Designed for Yamaha single outboard engines with mechanical or digital (DBW) controls with an separate ignition switch. Supplied with a Plug&Play wiring harness for easy installation, connecting directly to the existing wiring.
*A minor modification to the Yamaha ignition switch is required for the CoastKey system to operate correctly. Please refer to the installation instructions for details.
If you plan to use the extra function for remote trim/tilt control, we offer dedicated adapters for both mechanical and DBW installations:
- Mechanical: SKU CK20106-3 – Trim/Tilt Adapter
- DBW: SKU CK20103-3 – Trim/Tilt Adapter DBW
Please see our Accessories section for more information.
**The two extra functions can be used for a variety of remote-controlled functions. The kit is supplied and configured for two functions using +12V momentary signals. If you plan to use functions requiring a different type of signal or control, please contact us before ordering to confirm compatibility and the correct configuration.
Important – Yamaha Y-COP / EKS (Electronic Key Switch/FOB) If your Yamaha outboard is equipped with Y-COP or Yamaha’s EKS electronic key/FOB system, the Yamaha system must be disabled before CoastKey can be installed. This requires service by an authorized Yamaha dealer. If you currently use a Yamaha FOB to unlock or enable your engines, please contact an authorized Yamaha dealer to have the system disabled before installing CoastKey.
CoastKey and Yamaha Y-COP/EKS are not recommended for use together.
**Please make sure your Yamaha control system matches the description above before ordering. If you are unsure which kit is right for your installation, please contact us.
COASTKEY PREMIUM PLUS is a complete keyless system with remote START/STOP and two remote-controlled functions such as TRIM/TILT and anchor windlass, in addition to a wireless kill switch (ECOS).

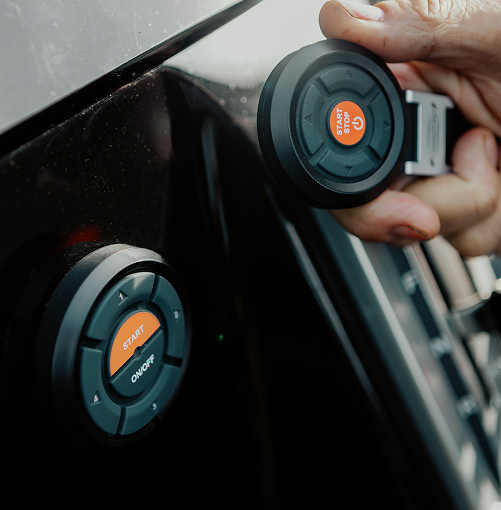

In addition to the Engine Control Box, Harness and Start Panel (which is mounted in clear view at the steering position), the system is equipped with a 5-button wireless remote control (FOB). Beyond the benefits of using the Start Panel (described below), the FOB can be used to turn on the ignition and start and stop the engine(s) wirelessly. When you have the FOB with you, it is not necessary to enter a PIN code to unlock the panel.

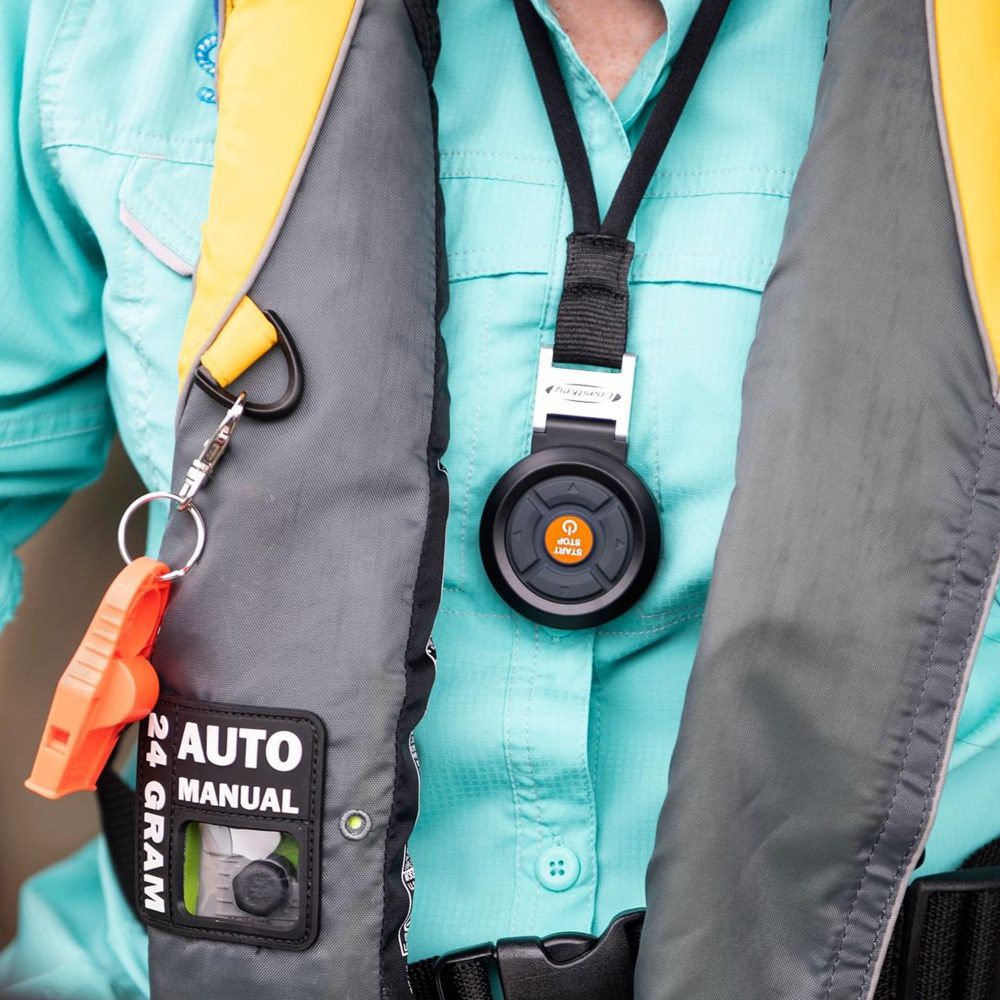

By wearing the FOB at all times, the captain is secured with one of the market’s best wireless man-overboard systems, which ensures that the boat stops if you fall overboard.
With PREMIUM PLUS you can remotely control two extra functions – for example trim/tilt and anchor windlass.
This is especially handy when you arrive at the boat: you can stand on the jetty, lower the engine and start it before getting on board. It is also very useful when launching the boat with a trailer. The two extra functions (AUX 1 and AUX 2) can also be used for a range of other remote-controlled functions – depending on what equipment you have installed on board.
- Keyless start
- Start Panel
- Engine Box
- Plug&Play cable ( easy installation )
- Wireless kill switch (ECOS)
- Wireless Start/Stop
- Wireless function AUX1
- Wireless function AUX2
CoastKey is installed instead of, or in parallel with, the existing ignition key, and you can still use the existing kill-switch lanyard.
